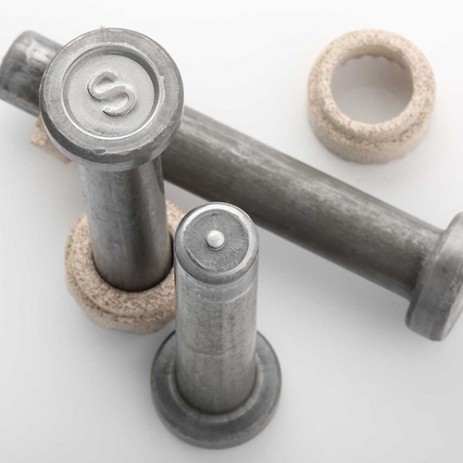

PERNOS NELSON, PERNOS TIPO NELSON
Tecnicamente llamados Pernos Conectores de Cortante
y función como pernos autosoldables.
Medidas standard de pernos nelson:
3/8", 1/2", 5/8", 3/4", 7/8", 1"
La función de los pernos nelson es la transmisión de las fuerzas cortantes horizontales a la losa de concreto propiciando que actúen como una sola unidad.
Aproximadamente son colocados 3 pernos nelson por m2 - metro cuadrado
Especificacion de los pernos nelson para la construcción en acero, puentes, columnas, contenciones...
Para mayor información consulte el manual de los pernos nelson
MEDIDA DE PERNOS NELSON Y TIPO NELSON | ||||
TIPO | PULGADAS | MILIMETROS | PZA / CAJA | KG / CAJA |
H4L | 3/8" x 3-1/8" | 9.53 x 79.38 | 430 | 27.3 |
H4L | 3/8" x 4-1/8" | 9.53 x 104.78 | 375 | 26.4 |
H4L | 1/2" x 2-1/8" | 12.7 x 53.98 | 400 | 30.5 |
H4L | 1/2" x 3-1/8" | 12.7 x 79.38 | 275 | 27.3 |
H4L | 1/2" x 4-1/8" | 12.7 x 104.78 | 180 | 22.8 |
H4L | 1/2" x 6-1/8" | 12.7 x 155.58 | 105 | 18.3 |
H4L | 5/8" x 2-11/16" | 15.88 x 68.26 | 195 | 27.8 |
H4L | 5/8" x 3-3/16" | 15.88 x 80.96 | 175 | 26.4 |
H4L | 5/8" x 4-3/16" | 15.88 x 106.36 | 125 | 25 |
H4L | 5/8" x 6-9/16" | 15.88 x 166.69 | 70 | 20.5 |
S3L | 3/4" x 3-3/16" | 19.05 x 80.96 | 130 | 27.7 |
S3L | 3/4" x 3-3/8" | 19.05 x 85.73 | 120 | 26.8 |
S3L | 3/4" x 3-7/8" | 19.05 x 98.43 | 110 | 27.4 |
S3L | 3/4" x 4-3/16" | 19.05 x 106.36 | 95 | 25.3 |
S3L | 3/4" x 4-7/8" | 19.05 x 123.83 | 80 | 24.7 |
S3L | 3/4" x 5-3/16" | 19.05 x 134.94 | 80 | 25.8 |
S3L | 3/4" x 6-3/16" | 19.05 x 157.16 | 60 | 22.7 |
S3L | 3/4" x 8-3/16" | 19.05 x 207.96 | 40 | 19.5 |
S3L | 7/8" x 4-3/16" | 22.23 x 106.36 | 75 | 27.3 |
S3L | 7/8" x 5-3/16" | 22.23 x 131.76 | 60 | 26.3 |
S3L | 7/8" x 6-3/16" | 22.23 x 157.16 | 50 | 25.7 |
S3L | 7/8" x 8-3/16" | 22.23 x 207.96 | 35 | 23 |
